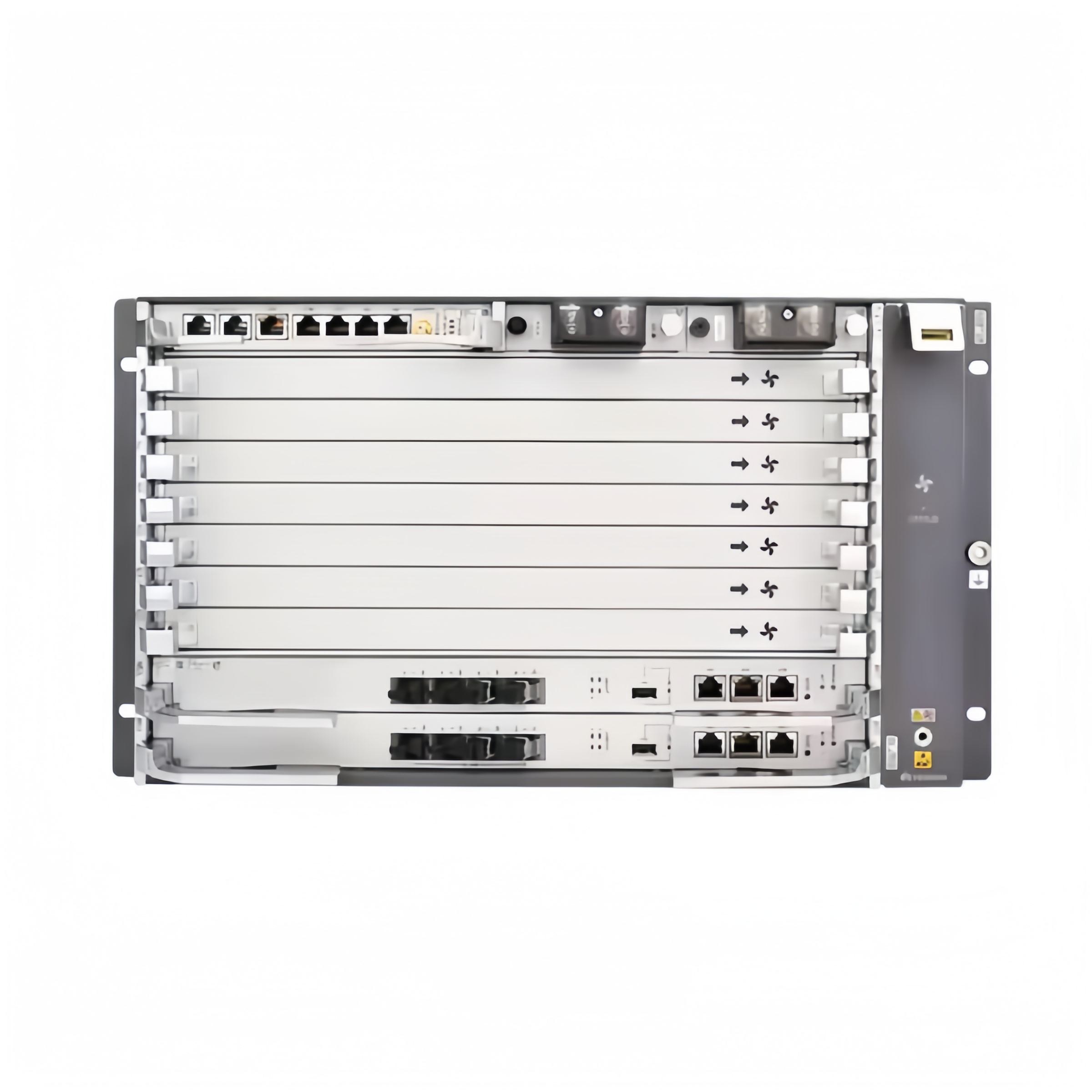

Huawei SmartAX MA5800 X7 OLT is 19inch, with 6U height 7 service slots, 200G throughput per slot, support GPON, 10G PON, 40G/100G PON ready; H901BPMB subrack equipped with 2xH901MPLA, 2xH901PILA. It adopts a distributed forwarding architecture with a single-slot throughput of 200G and supports large-capacity 40GPON non-blocking access.
Huawei SmartAX MA5800 X7 OLT Product Overview
The single-frame can meet 32,000 households with 100-megabit non-blocking access and enjoy 4K TV. To ensure 100 Mbps non-blocking access per user in the 4K era, Huawei MA5800-X7 new-generation OLT should have ultra-wideband, large-capacity 4K video access aggregation capability, and single-slot switching capacity needs to reach 400 Gbps, which means that each slot Can support 16x10G PON, 4x40G PON and 2x100G PON non-blocking access, the entire OLT system can achieve 320,000 home 100M non-blocking enjoy 4K TV.
Huawei SmartAX MA5800 X7 OLT Product Features
- Huawei MA5800-X7 uses PON/P2P to realize unified access and convergence of any media of optical fiber, copper wire and cable, and evolve the independent access network of multiple media into a unified access network to achieve unified access, convergence and management , Simplify network architecture and operation and maintenance.
- Support PON/P2P full service access, one optical network supports full scene access such as home, enterprise, and mobile backhaul.
-
The functions of OLT and aggregation switches are integrated to simplify the network hierarchy, reduce space and energy consumption, and reduce OPEX.
The service board adopts programmable NP architecture, supports SDN-based intelligent services, and supports rapid deployment of new services. - Support virtual access network function, realize multi-service intelligent operation or develop network wholesale business, and provide better business experience.
- The MA5800-X7 service frame provides 12 slots, including 2 main control board slots, 2 power supply board slots, 1 general interface board slot, and 7 service board slots.
-
The backplane supported by the MA5800-X7 service frame is H901BPMB.
The fan frame of the Huawei MA5800-X7 business frame is equipped with 6 fans and the H901FMMA fan monitoring board, which has the functions of heat dissipation, monitoring, and speed regulation to ensure that the device works at a stable temperature.
