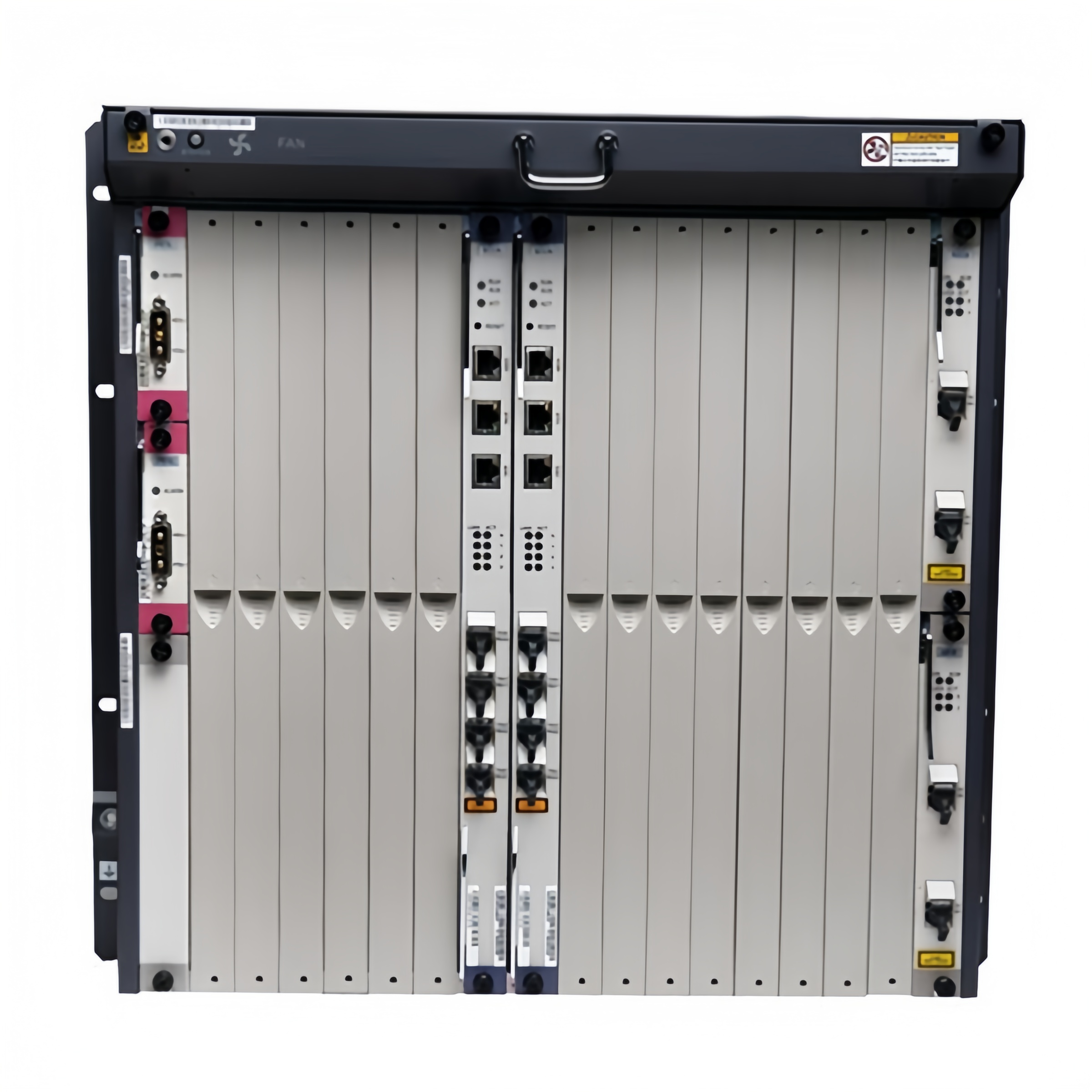

Huawei MA5680T GPON OLT H80Z1MABH subrack equipped with 2xH801SCUN, 2xH801PRTE
Comes with power cable, 2 PCS mount ear, accessory package
Huawei MA5680T GPON OLT system
Chassis supports 14 Service Slots (19inch), and Chassis supports 16 Service Slots (21inch)
Two power slot redundancy for DC power input
Two slot redundancy for main control board
Two slot for uplink board
Support GPON, EPON and P2P
Support GPON EPON simultaneously
Support 8-GPON port interface card GPBD/GPBH, 16-GPON port interface card GPFD
Support GPON split ration 1:128
Support GE uplink board (GICF) or 10GE uplink board (X2CS)
Huawei MA5680T is a aggregation Optical Line Terminal (OLT), it supports up to 14 service slots (19inch type) and can support maximum 28,000 subscribers (GPON). MA5680T has GICF/X2CS Uplink Board available for selection, and two power slot redundancy for DC power input. Besides that one typical configuration, Thunder-link.com also offers more bundle line, to meet your different requirement on various scenario. In addition, Thunder-link.com provides self configuration page, where you can configure your own MA5680T by selecting boards and items yourself. With our professional technical support to rich your experience.
